• 48" Full Slide out
  • Double Slide Locks
  • Overall length including release lever 49.25

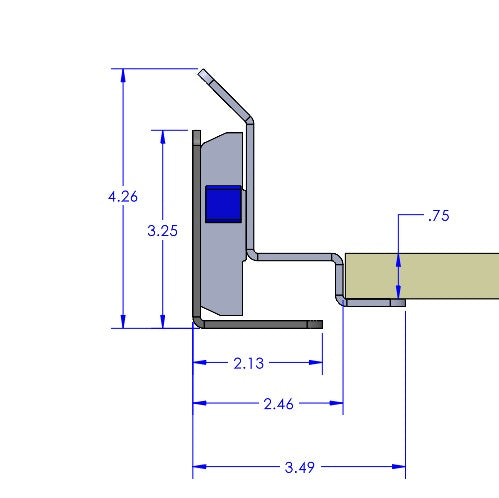

  • Add Your Custom Width 3/4" Plywood Floor To Make Any Width Tray Slide You Want **Plywood NOT included**
  • Slim Design to Fit Tight Spaces
  • Low Profile Design
  • Made to Fit L-Track or be Floor Mounted (hardware not provided).
  • Proudly Made in the U.S.A.

**Wood Floor Not Provided**

**click "HERE" for installation instructions**

RB Components DIY Slide Tray Kits are perfect for stowing bikes, camping gear or any other misc. items you may have. Available in multiple depth slides. Our DIY tray was designed to give you all the necessary hardware and you provide the floor to fit your width.

*Slides are rated at 500lbs.  This rating will vary depending on your chosen mounting method.  Hard mounting to floor and thru bolting will provide the highest capacity.  Mounting to L Track as shown will reduce the weight capacity and should be tested based on L Track attachment method

To mount to L-Track you will need the following items:

- #2506 - L-Track Fitting with Threaded Stud (4pcs)

- Aluminum L-track
