3057-76-RETRO-RB
76" Retro Sofa Sleeper - Black Carbon Fiber Vinyl
Any wall can be a bed. The 76" Retro Sofa Sleeper mounts flat to the wall of a van, trailer, toy hauler, garage, shop or spare room – a full-length sofa by day that folds out to a 40" bed at night. Stowed, it sits just 5-1/2" off the wall, so the floor stays open.
It's built on a steel frame with a durable foam cushion, upholstered in faux carbon fiber vinyl with charcoal stitching. The seat sits 18-1/2" off the floor, leaving 13-1/2" of clearance underneath for storage. Mount it directly to the wall with RB wall mounts, or on an RB Sofa Storage Box (sold separately) to add storage underneath. Going from couch to bed takes seconds.
| Seated Position | |
| Length | 76" (Overall – widest point 78-3/8") |
| Depth | 26" (28" off the wall) |
| Height | 34" (to top of backrest cushion) |
| Seat Height | 18-1/2" (floor to top of seat cushion) |
| Clearance Under Seat | 13-1/2" (floor to bottom of seat frame – room for storage) |
| Wall Mounting | Each wall mount bracket is 5" tall, with fastening points spaced 4" apart. Mounted upright, it covers 13-1/2" to 18-1/2" above the floor; flipped, it covers 8-1/2" to 13-1/2". Make sure there's solid backing or framing behind the full bracket area. |
| Stowed Position | |
| Length | 76" |
| Depth | 5-1/2" (off the wall) |
| Height | 52" (from the floor to top of cushion) |
Common Questions
Where can I install it?
Anywhere with a solid wall to mount to – vans, trailers, toy haulers, garages, shops and small living spaces.
How big is the bed?
76" long with a 40" sleeping surface.
Do I need a storage box?

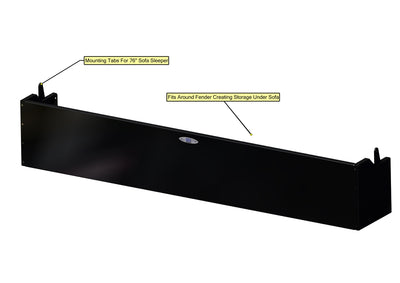

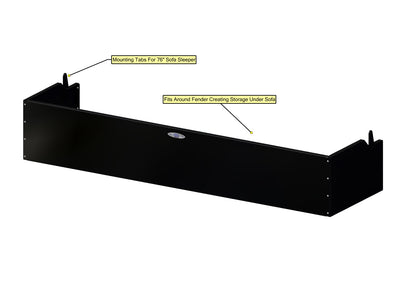

No. It mounts directly to the wall with RB wall mounts. If you add an RB Sofa Storage Box, the Deep box needs no bench support legs; the Shallow box does require them.
Is it D.O.T. rated?
No. In a vehicle, it is not a substitute for crash-tested passenger seating.
Download mounting instructions (PDF)
Due to the size of this item, extra time is needed to pack and prep for shipment. Usually ships within 3–5 days.
